Deskripsi

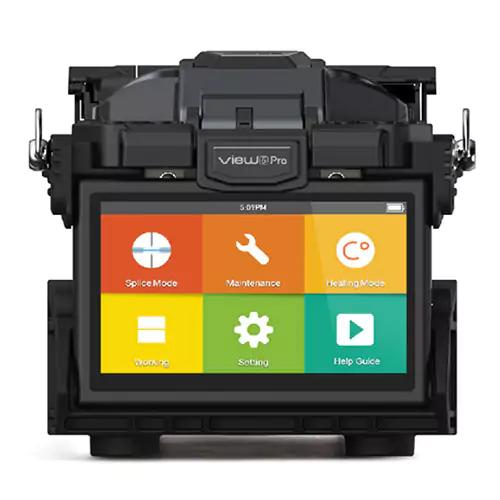

INNO VIEW 5 PRO a core-alignment splicer with the world’s highest fiber image magnification rate, is the most proficient fusion splicer in the market.
Performance-Oriented Structure
INNO VIEW 5 PRO is the most precise active cladding fusion splicer in the market with its advanced four motored alignment algorithm to ensure the ultimate work experience.
Manage your Fleet with INNO View Pro Manager
Cloud Management System
Geolocation
Geolocation all through real-time
Fleet Management
Asset & Fleet Management
GPS Available
GPS for real-time location
Device Insight
Preventive Maintanence
Job Management
Comprehensive job assignment
Anti-Theft
Local and remote locking system
The Characteristics
- Detachable SOC Holder and Heating Oven
- Built-in IoT Module for Mobile Data Communication
- Core Alignment Splicing with DACAS Profiling System
- Web-based, Real-time Operation System
- The Highest Magnification & Resolution, User Friendliest Interface with Built-in Videos, 5” Color LCD Touch Screen, Double Tapping (Zoom In & Out).
Technical Specification
Splicing Time
7 sec average (quick mode) / 9 sec average (typical)
Heating Time
15 sec (typical heating time)
Number of Fiber
single
Fiber View & Magnification
520X magnification
Dimension
149W x 177D x 151H mm (including rubber bumper)
130W x 166D x 140H mm (excluding rubber bumper)
Display
touch screen / button
Standartd Package
| Main Unit | VIEW5 Pro | |
|---|---|---|
| Cleaver | V10 PRO | 1 each |
| Fiber Holder | FH-45 | 1 set |
| SOC Holder | SH-SOC-R | 1 each |
| SOC Heater Cover | HTS-SOC-02 | 1 each |
| AC Adapter | JS-180300 | 1 each |
| Cooling Tray | CG-22 | 1 each |
| Electrode | E-70 | 1 set |
| Battery Pack | LBT-52 | 1 each |
| Power Cable | ACC-25 | 1 each |
| Carrying Case | ICC-55 | 1 each |
| Work Tray | IWS-06 | 1 each |
| Work Tray Bolt (M6*8) | WTB-01 | 2 each |
| Shoulder Strap | ST-01 | 2 each |
| USB Cable | USB-7P | 1 each |
| Shoulder Strap | ST-01 | 2 each |
| Quick Reference | 1 each | |
*USB-7P: Type-C USB to Type-A USB (Male & Female) Cable
| Optional Accessories | ||
|---|---|---|
| Alcohol Pump | TK02-AP01 | 1 each |
| Stripper | TK02-MP01 | 1 each |
| Cigarette Lighter Cable | CJ-11 | 1 each |
| Electrode Grinder | EG-18 | 1 each |
| Heating Sleeve (60mm) | PS-60S | 1 pack (100 each) |
Additional Information
Weight : 8 kg
Dimensions : 155 × 130 × 143 cm
Option : View 5, View 5 Pro
