Deskripsi

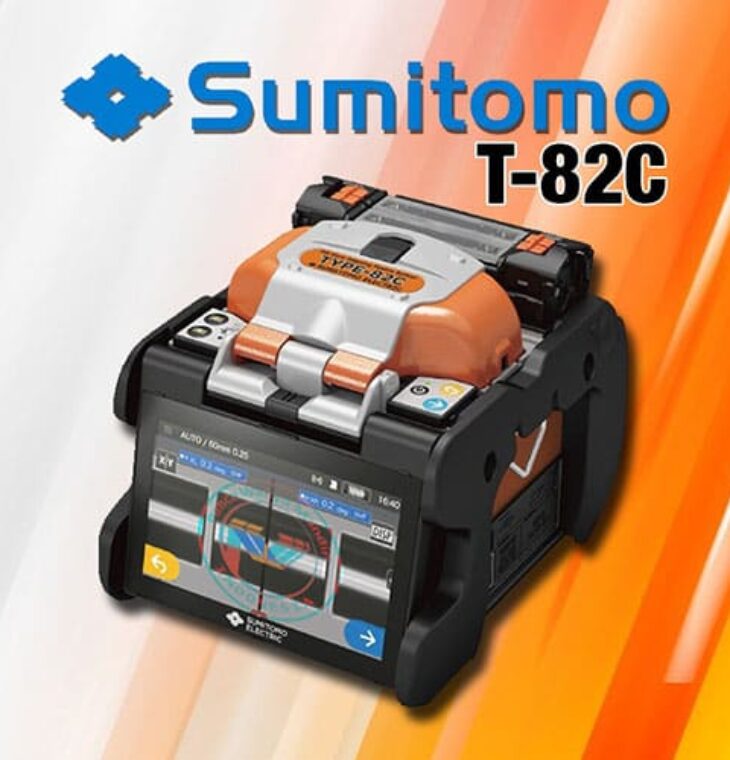

Sumitomo T-82C+
Sumitomo T82C+ dilengkapi dengan NanoTune ™ menyempurnakan pengalaman sambungan Anda. NanoTune ™ mengurangi waktu yang Anda habiskan untuk bekerja dan mengurangi kerugian penyambungan secara keseluruhan, dengan menggunakan teknologi penyambungan AI pertama di dunia.
Penyambung fusi pemantauan inti langsung untuk penyambungan ultra cepat di setiap lingkungan. Waktu penyambungan: 5 detik, waktu pemanasan: 8 detik.
Fitur dan Keuntungan
- Penyambungan ultra cepat: 5 detik.
- Pemanasan ultra cepat: 8 detik.
- Identifikasi serat otomatis (SMF, MMF, DSF, NZDSF, BIF, lainnya).
- Kalibrasi busur otomatis.
- Fungsi sambungan otomatis serat G.657.
- Mendukung operasi penyambungan dua arah.
- Tahan debu, tahan air dan tahan guncangan.
- Ringkas & ringan (hanya 1,9 kg).
- Pengoperasian layar sentuh.
- Upgrade perangkat lunak melalui internet.
- Pemeliharaan interaktif jarak jauh melalui internet.
- Dilengkapi dengan video pelatihan pengguna onboard.
Spesifikasi
Optical fiber requirements
| Material | Silica glass | |
| Profile types | SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF | |
| Fiber diameter | Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm | |
| Applicable fiber or cable size | up to φ1,000 µm | Drop cable (2.0×3.1 mm), Indoor cable (2.0×2.0 mm) |
| Cleave length | 5~16 mm | 10 mm |
Standard performance
| Splice loss (typical) | SMF: 0.01 dB, MMF: 0.01 dB, DSF: 0.034 dB, NZDSF: 0.03 dB | |
| Splicing cycle time (typical) | 5 sec. (Quick mode), 7 sec. (SMF standard mode), 7 sec. (Auto mode) | |
| Heating cycle time (typical) | 8 sec. | |
| Splice & Heat cycles | Approx. 300 | |
| Fiber view & magnification | Two CMOS cameras observation, 380X (zoom: 760X) for X or Y single axis view, 270X for both X & Y dual axis view | |
| Splicing programs | Max. 320 | |
| Heating programs | Max. 100 | |
Functions
| Loss estimation | Provided | |
| Splice image capture / Splice data storage | 200 images / 10,000 splice data | |
| Proof test | 1.96N (200 gf) | |
| Universal clamps for 250µm, 900µm tight & loose buffer fiber | Provided | |
| Reversible coating clamps | Provided | |
| Dual automatic independent heaters | Provided (US patent 7,412,146) | |
| User-selectable heater clamp operation | Provided | |
| Onboard user training video | Provided | |
| Automatic arc calibration | Automatically compensates for environmental condition changes | |
| Arc test | Provided | |
| Display of remaining Splice & Heat cycles | Provided (Battery mode) | |
| Remote interactive maintenance | Provided | |
Terminals
| DC output | DC12 V (for JR-6) | |
| USB port | USB 2.0 (mini-B type) | |
| Storage media | SD / SDHC memory card | |
Power supply
| AC input | 100 ～ 240V, 50 / 60 Hz (ADC-1430) | |
| DC input | 10 ～15 V | |
| Battery module | Li-ion 10.8 V, 6,400 mAh (BU-16) | |
Mechanical Parameters
| Monitor | 5.0″ touch screen color LCD display | |
| Size | 128(W) x 154(D) x 130(H) mm (without anti-shock rubber) | |
| Weight | 1.9 kg (without battery), 2.2 kg (with battery) | |
| Electrode life | 3,000 arc discharges | |
Environment
| Operating conditions | Altitude 0～6,000 m, Temperature -10～+50°C, Humidity 0～95% (non-condensing), Wind velocity up to 15 m/s | |
| Storage conditions | Temperature -40～+80°C, Humidity 0～95% (non-condensing), Battery -20～+30°C (long term) | |
| Dust resistance | Equivalent to IP5x (Operates normally after 8 hours in a dust chamber (containing dust of particle size 25 µm or below | |
| Water resistance | Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15°) | |
| Shock resistance | Drop from 76cm on 5 faces (excluding top face) | |
Additional Information
Weight : 8 kg
