Deskripsi

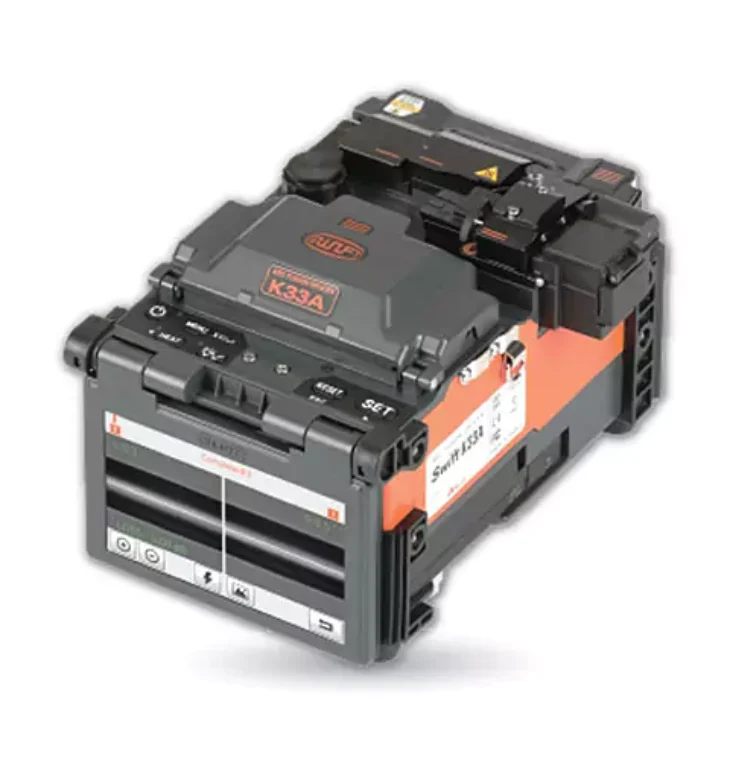

Ilsintech Swift K33A
All-in-One
Ilsintech Swift K33A baru, splicer penyelarasan inti IPAAS premium menawarkan sistem All-In-One eksklusif kami yang memberikan kemampuan kerja terbaik, dan integrasi 5 fungsi ke dalam satu unit (pengupasan, pembersihan, pembelahan, penyambungan, dan perlindungan). Penyambung serat yang ringkas dan kokoh ini sangat ideal untuk sirkuit optik jarak menengah dan panjang, LAN, CATV, FTTx. Dengan bilah berputar yang memungkinkan hingga 77.000 belahan, K33A menggabungkan daya tahan tahan lama dengan kinerja presisi tinggi.
Fitur dan Keuntungan
- ROTATING BLADE LIFE UP TO 77,000 cleaves
- ELECTRODE LIFE UP TO 18,000
- Remote maintenance via internet
- The fusion splicer with All-in-One system provides the best workability with integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting)
- No scratches on fiber by thermal stripping (extended tensile of fiber strength by 3kg more)
- Wide 127mm (5.0 in) color LCD monitor with electrostatic touch screen & bidirectional operation system
- Powerful lithium polymer battery with large capacity (6000mAh)
- Resistance to shock, dust, and water
- Compatible with Fusion Splice-on Connector (FSOC) in accordance with the industry standard
- Rotating blade allows up to 110,000 cleaves.
Spesifikasi
| Category | Description Ilsintech Swift K33A |
| Fiber alignment |
IPAAS Core Alignment
|
| Applicable type of fibers |
SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); SM (G.657 A1,A2/B2,B3); SM (G.654 E)
|
| Fiber count |
Single fiber
|
| Applicable fiber dimensions |
Cladding diameter: 80~150㎛, Coating diameter: 100㎛~3mm
|
| Fiber setting and cleaved length |
250㎛,: 5-16mm; 900㎛: 8-16mm
|
| Splicing modes |
Splice mode: 300, Heat mode: 100, Strip mode: 50
|
| Typical splice loss |
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
|
| Return loss |
> 60dB (typical)
|
| Splicing time |
Typical 6 sec. (Quick Mode)
|
| Sleeve heating time |
9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)
|
| Applicable protection sleeve |
40mm or 60mm (fiber)/28mm or 32mm (connector)
|
| Storage of splice result |
The last 10,000 results to be stored in the internal memory (image 10,000 results)
|
| Tension test |
2N/4.4N (Option)
|
| Operating condition |
Altitude: 0-5,000m above sea level, Temperature: -10ºC ~ 50ºC (-14ºF ~ 122ºF); Humidity: 0~95%;
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
|
| Storage condition |
Temperature: -40ºC~ 80ºC (-40ºF ~ 176ºC); Humidity: 0~95%
|
| Dimension |
136(W) x 215(L) x 137(H) mm (excluding bumper)
|
| Weight |
2.45kg (including battery)
|
| Viewing method and display |
Two CMOS cameras and 127mm (5.0 in) color LCD monitor with electrostatic touch screen
|
| Fiber view and magnification |
X/Y: 200X; Max: 400X
|
| Power supply |
100~240V AC
|
| No. of splice cycles with battery |
Typical 282 cycles (6000mAh)
|
| Electrode life |
Up to 18,000 splices
|
| Blade life |
Up to 77,000 cleaves
|
| Terminals |
USB, external power (DC 12V available for car cigar jack)
|
Additional Information
Weight : 8 kg
